Product Details

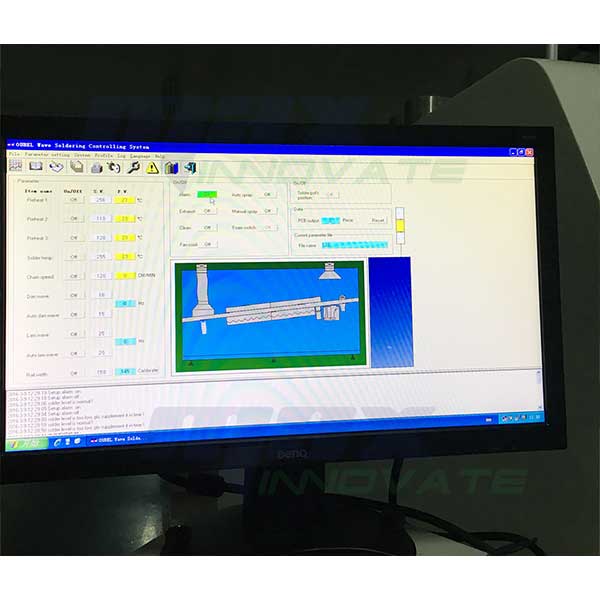

1.Control system: Machine is controlled by Siemens PLC +Lenovo PC,with stable performance; high precision of profile repetition can avoid product loss attributed by abnormal running of the computer.

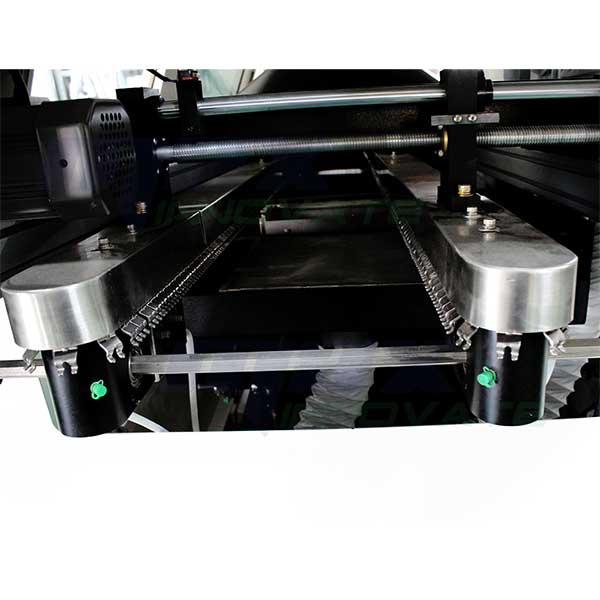

2.Conveyor system: Guide rail is with special design,hard out of shape; Width adjust applies to the four point wore and gear design,adjust accurate and smooth.Titanium alloy conveyor finger,strengthen and wear resistance.
3.Spray system： SMC cylinder+Japan ST-06 spray nozzle. Spray speed,stroke can adjust. Spray is uniformity.Flux collection system are optional.
4.Preheating system: Longer preheating zone,modular design,high precise temp control.
5.Welding system: Patent solder tank design,both of two waves width can be adjustable,minimize the oxidation of the tin oven.Lead free solder tank,longer lifespan.Solder temperature control accuracy ± 1°. Wave crest controlled by the stepless frequency convesision speed control.
6.Cooling system: Forced air cooling + Cooling fan.
Our advantages:
1.We have a high tech team who can provide a series of professional technical support for our customers;
2.We are professional SMT&DIP machine factory in China for over 20 years;
3.Strict QC System. We will check two times with your orders. The first time is during mass production and the second time is prior to shipment. We will check each and test machine before shipment.
4.Competitive price. You can get a competitive price from here. Our price is factory price. Our purpose: customer oriented, quality first.
5.All machine size is customized,provide Non-standard service; We sincerely hope to work together with every client, to build the long-term business and friendship. Believe in us, Believe in professional!
Specifications
| Model SE-450 | Dimensions 4450*1420*1500mm | Power 3P5W,380V/220V 50HZ 63A |
| Weight Approx. 2300kgs | Start up power 24KW | Operation power 8KW |
| Control system PLC+PC/touch screen | Spray pressure 0.25Mpa-0.4Mpa | Exhaust Top exhaust |
| Exhaust ducting diameter 200mm | Preheating zone length 1800mm | PCB width 50-350mm |
| Available components height Top 120mm,bottom 15mm | Fingers Special titanium fingers | Solder pot capacity Lead free solder 400-450kgs |
Key Features
High production efficiency
PLC+ PC control
Titanium finger transport,rail width is adjustable
Longer preheating zones
SMT&DIP machines factory in China! Good quality,Good serive, competitive price!
