Product Details

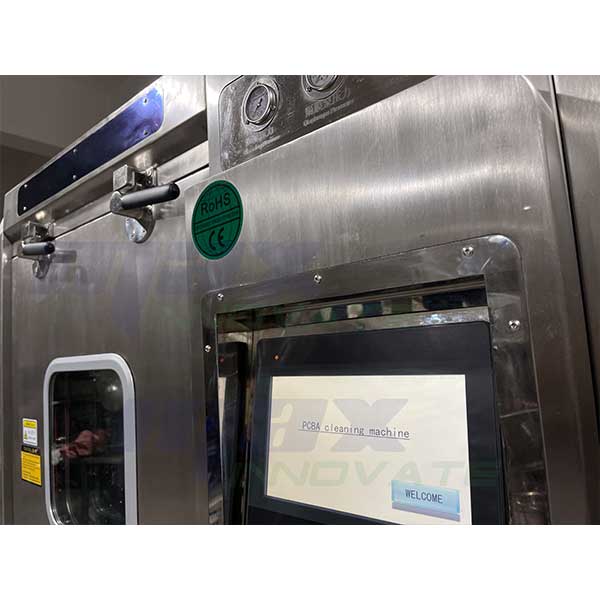

1.Fully automatic cleaning mode: when the equipment is in operation, the workpiece moves in the washing basket with the washing basket back and forth. The high-pressure jetting and heating cleaning liquid of the spray system can make the PCBA realize the whole process of automatic cleaning, rinsing and drying in all directions; 2.The whole process visualization: visualization window and LED light device, the cleaning process at a glance; 3.The most scientific nozzle design (patent): the use of up and down dislocation, left and right gradually increasing distribution, completely covering the cleaning blind zone. The spray arm and nozzle are detachable; 4.Visual nozzle pressure can be adjusted: It solves the collision and splash problem of small workpiece size under high pressure spray condition during cleaning; 5.The photoelectric sensor switch installed in the window protects the personal safety. The standard dilution tank/rinsing tank heating system greatly improves the cleaning efficiency and shortens the cleaning time; 6.The fuselage village quality: the overall 304 stainless steel body. Acid, alkaline and other cleaning fluid; 7.Comprehensive cleaning system: compatible with running water or chemical cleaning, for SMT; Thoroughly cleaning the surface residual rosin, water-soluble flux, no-clean flux / solder paste and other organic and inorganic pollutants after welding by THT PCBA; 8.The built-in filter device for cleaning can realize the recycling of solvent and reduce the amount of solvent; 9.There is an emergency stop button and leakage protection function; 10.Lower operating costs: lower equipment investment costs, localized services, teams and adequate spare parts supply. Cleaning area: 1.The cleaning liquid storage tank is used for recycling and storing the cleaning liquid, and the cleaning liquid is subjected to level 3 filtration, heating and monitoring, and liquid level monitoring; 2.Cleaning pump: 5.5KW (1), 4 spray arms, 48 nozzles; 3.Reservoir volume: ≤ 70L (1); 4.Filter device: stainless steel filter 1mm (1 piece), filter net 0.5mm (1 piece), cleaning folding filter 0.45UM (1); 5.Heating power: 9KW (1), heating temperature: room temperature – 70 ° C (adjustable); 6.Liquid level protection: low, medium, stop, over limit; 7.Spray pressure: 0.1-0.6Mpa (adjustable); Our advantages: 1.We have a high tech team who can provide a series of professional technical support for our customers; 2.We are professional SMT&DIP machine factory in China for over 20 years; 3.Strict QC System. We will check two times with your orders. The first time is during mass production and the second time is prior to shipment. We will check each and test machine before shipment. 4.Competitive price. You can get a competitive price from here. Our price is factory price. Our purpose: customer oriented, quality first. 5.All machine size is customized,provide Non-standard service; We sincerely hope to work together with every client, to build the long-term business and friendship. Believe in us, Believe in professional!
Specifications
| ModelC-800 | Dimensions1300mm(L) ×1400mm(W) × 1950mm(H) | Size in cleaning area650mm(L) ×600mm(W) ×160mm(H) |
| Power / air source380V/15Kw (rated power) / 0.45Mpa-0.7Mpa | Spray tank capacity20L | Heater power in spray tank and dilution tank9KW |
| Cleaning time0~99 mins (adjustable) | Cleaning temperature (liquid)Normal temperature —70 ° C (adjustable) | Rinsing time1 minute / time (1-59 times / adjustable) |
| Rinsing temperature (DI water)Normal temperature —55 ° C (adjustable) | Drying time0~99 mins (adjustable) | The monitoring range of the resistivity meter0~18MΩ |
| Power of heater with solvent tank9KW | BrandMax Innovate |
Key Features
Fully automatic cleaning mode
Visual nozzle pressure can be adjusted

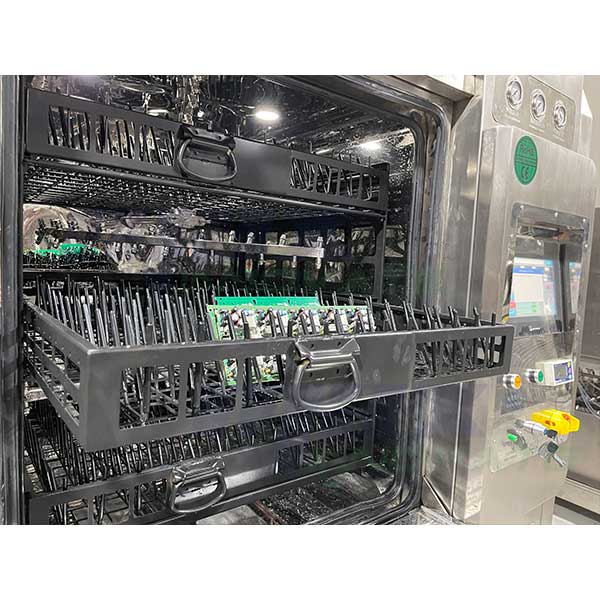

Large capacity,three layer cleaning tank
