Product Details

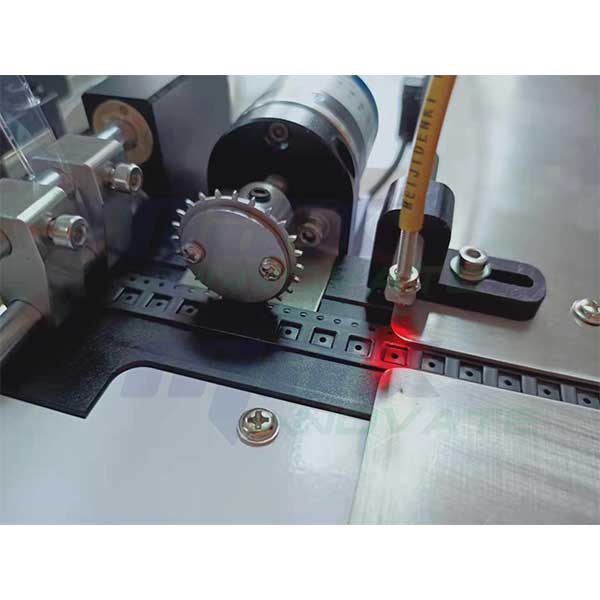

1. Applies to the step motor to cover the tape , higher precise!

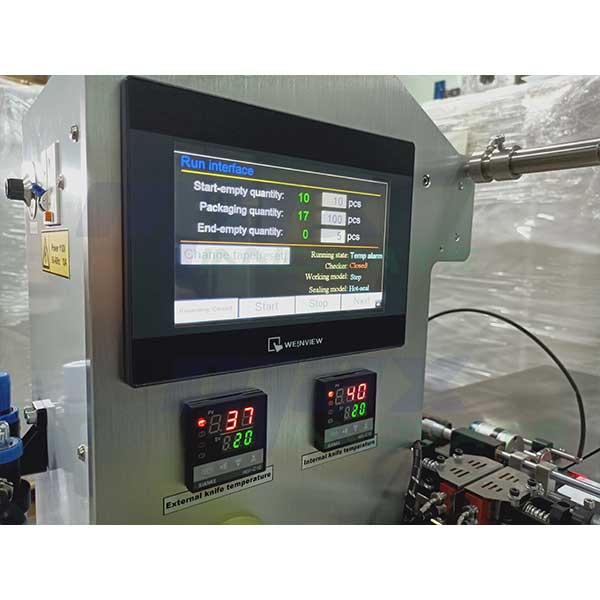

2. PLC+Touch screen control , more stable and easy to operate!

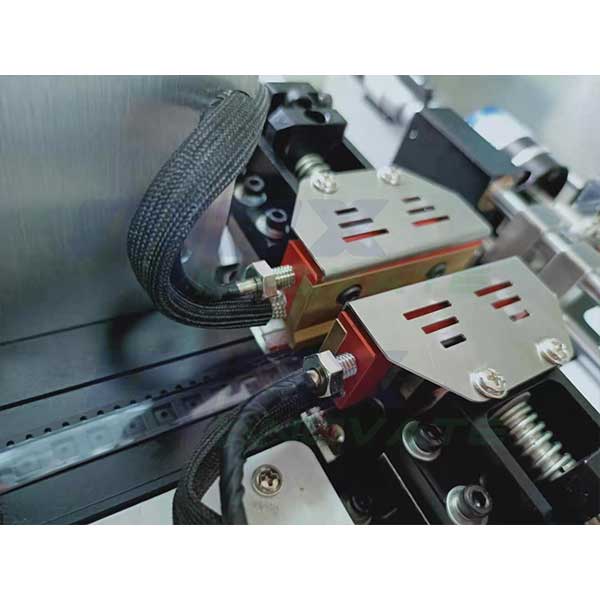

3.High precision vertical sealing, good sealing effect, and with the precision trimmer, trimming do ± 0.01mm.
4.Vertical sealing structure; Sealing tape or adhesive tape carrier are optional, inching seal and continuous seal both are ok .
5.With counting function , zero mistake! 6.Length can be customized.
Our advantages:
1.We have a high tech team who can provide a series of professional technical support for our customers;
2.We are professional SMT&DIP machine factory in China for over 20 years;
3.Strict QC System. We will check two times with your orders. The first time is during mass production and the second time is prior to shipment. We will check each and test machine before shipment.
4.Competitive price. You can get a competitive price from here. Our price is factory price. Our purpose: customer oriented, quality first.
5.All machine size is customized,provide Non-standard service; We sincerely hope to work together with every client, to build the long-term business and friendship. Believe in us, Believe in professional!
Specifications
| Model T-02 | Dimensions 1500*430*720(mm) | Packing speed 3000-7000pcs/hour |
| Packing width 8-72mm tape all materail tape | Voltage 220 V | Power 300 W |
| Rotation Speed 350RPM/Min | Weight Approx.100kgs | Brand Max Innovate |
Key Features
PLC+Touch screen control
With counting function,with leakage
Inching seal and continuous seal modes
SMT&DIP machines factory in China! Good quality,Good serive, competitive price!
